TYPE SSM | MEDIUM VOLTAGE SOFTSTARTERS

DESCRIPTION

  • Fused disconnect switch with blown fuse indicators and door safety interlocks rated for load break/fault make with automatic grounding arm
  • Inline isolation vacumm contactor sized for across-the-line motor starting
  • 120V fused control power transformer standard in line start section
  • Fiber optic firing circuit for superior electrical noise isolation

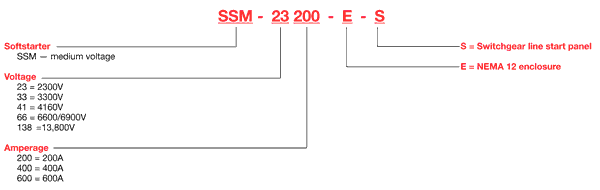

CATALOG NUMBER EXPLANATION
TYPE SSM
Ratings Soft start with line start section Optional soft start only
Volts Max. Amps Nominal
Max. HP
Catalog Number Catalog Number
2300 200
400
600
800
1500
2500
SSM-23200-E-S
SSM-23400-E-S
SSM-23600-E-S
SSM-23200-E
SSM-23400-E
SSM-23600-E
3300 200
400
600
1000
1800
3000
SSM-33200-E-S
SSM-33400-E-S
SSM-33600-E-S
SSM-33200-E
SSM-33400-E
SSM-33600-E
4160 200
400
600
1250
2500
5000
SSM-41200-E-S
SSM-41400-E-S
SSM-41600-E-S
SSM-41200-E
SSM-41400-E
SSM-41600-E
6600/6900 200
400
600
2500
5000
7500
SSM-66200-E-S
SSM-66400-E-S
SSM-66600-E-S
SSM-66200-E
SSM-66400-E
SSM-66600-E
13,800 300
600
7500
15,000
SSM-138300-E-S
SSM-138600-E-S
SSM-138300-E
SSM-138600-E
