TYPE PST | SOFTSTARTERS | OPEN

DESCRIPTION

  • Wide main voltage range, 200 - 690 VAC
  • Wide control voltage range, 100 - 250V, 50/60Hz
  • Current ratings 30 to 1050A (In Line) and 52 - 1800A (Inside Delta)
  • Premium adjustable Softstarters functions like start/stop ramp, kick start, jog, step down voltage and sequential starts
  • Prepared for Field-bus communication
GENERAL PRODUCT INFORMATION

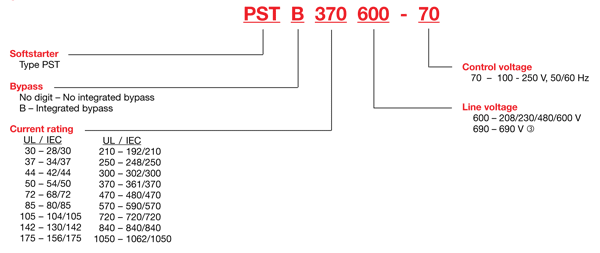

CATALOG NUMBER EXPLANATION
TYPE PST | OPEN | CONNECTED IN-LINE
Maximum Motor Current Maximum Horsepower Weight Catalog Number
UL IEC 208V 240V 380V 480V 600V
28 30 7.5 10 15 20 25 9 PST30-600-70
34 37 10 10 20 25 30 9 PST37-600-70
42 44 10 15 25 30 40 11 PST44-600-70
54 50 15 20 30 40 50 11 PST50-600-70
68 72 20 25 40 50 60 22 PST72-600-70
80 85 25 30 50 60 75 22 PST85-600-70
104 105 30 40 60 75 100 27 PST105-600-70
130 142 40 50 75 100 125 33 PST142-600-70
156 175 50 60 100 125 150 44 PST175-600-70
192 210 60 75 125 150 200 49 PST210-600-70
248 250 75 100 150 200 250 49 PST250-600-70
302 300 100 100 150 250 300 53 PST300-600-70
361 370 125 150 200 300 350 84 PSTB370-600-70
480 470 150 200 300 400 500 93 PSTB470-600-70
590 570 200 250 350 500 600 97 PSTB570-600-70
720 720 250 300 450 600 700 119 PSTB720-600-70
840 840 300 350 500 700 800 124 PSTB840-600-70
1062 1050 400 450 600 900 1000 137 PSTB1050-600-70
TYPE PST | OPEN | CONNECTED INSIDE DELTA
Maximum Motor Current Maximum Horsepower Weight Catalog Number
UL IEC 208V 240V 380V 480V 600V
42 51 10 15 30 30 40 9 PST30-600-70
54 64 15 20 40 40 50 9 PST37-600-70
72 76 20 25 50 50 60 11 PST44-600-70
80 86 25 30 50 60 75 11 PST50-600-70
104 124 30 40 75 75 100 22 PST72-600-70
130 148 40 50 75 100 125 22 PST85-600-70
156 181 50 60 100 125 150 27 PST105-600-70
192 245 60 75 150 150 200 33 PST142-600-70
248 303 75 100 200 200 250 44 PST175-600-70
302 363 100 100 200 250 300 49 PST210-600-70
361 433 125 150 250 300 350 49 PST250-600-70
480 519 150 200 300 400 500 53 PST300-600-70
590 640 200 250 400 500 600 84 PSTB370-600-70
720 814 250 300 500 600 700 93 PSTB470-600-70
840 987 300 350 600 700 800 97 PSTB570-600-70
1247 1247 400 500 800 1000 1200 119 PSTB720-600-70
1454 1454 500 600 900 1200 1500 124 PSTB840-600-70
1839 1818 600 700 1000 1500 1800 137 PSTB1050-600-70
