METAL LIMIT SWITCHES | 40mm | Ø 22 STAINLESS STEEL ROLLER LEVER

DESCRIPTION

  • 40mm, IP66, UL Type 4X
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
ADDITIONAL INFORMATION
Operating Head Type Ø 22 Stainless Steel Roller Lever
Movement to be detected 30˚ Cam Translation Movement
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation)
Maximum actuation speed (m/s) 1.5
Min. force - Actuation (N)
12
Min. force - Positive opening operation (N) 40
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Ø 22 Stainless Steel
Roller Lever


LS45M32B11
Snap Action
Ø 22 Stainless Steel
Roller Lever
LS45M32D11
Non-Overlapping Slow Action
Ø 22 Stainless Steel
Roller Lever
LS45M32C11
Overlapping Slow Action
Ø 22 Stainless Steel
Roller Lever
LS45M32L02
Slow Action
Ø 22 Stainless Steel
Roller Lever
LS45M32L20
Slow Action
Ø 22 Stainless Steel
Roller Lever
LS45M32B02
Snap Action

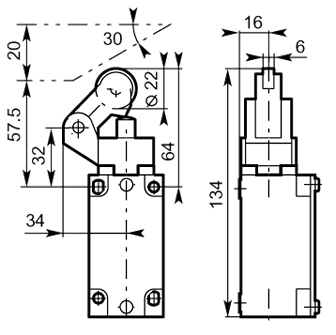

APPROXIMATE DIMENSIONS (mm)
