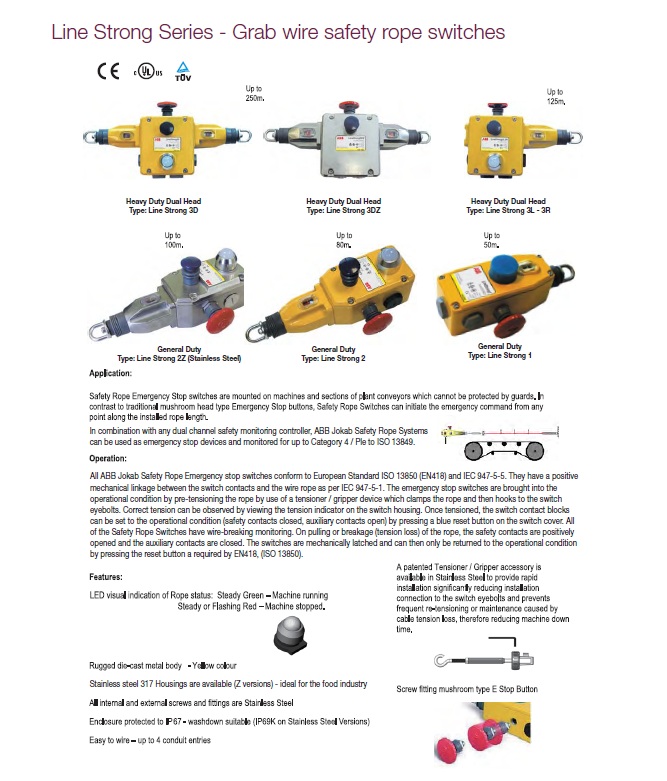

JOKAB LINE STRONG EMERGENCY ROPE PULL SWITCHES| Category 4 to EN 954-1 or PLe ISO13849-1

DESCRIPTION

ABB Jokab Safety Line Strong switches are designed to be mounted on machines and sections of conveyors which cannot be protected by guards. In contrast to traditional mushroom head type Emergency Stop buttons, Safety Rope Switches can initate the emergency command from any point along the installed rope length and provide robust Emergency Stop Rope Pull protection for exposed conveyors or machines.

In combination with a dual channel safety monitoring relay, ABB Jokab Safety Rope Systems can be used as emergency stop devices monitored for up to Category 4 to EN 954-1 or PLe ISO13849-1. All ABB Jokab Safety Rope Emergency stop switches conform to ISO13850 and IEC 947-5-5. They have a positive mechanical linkage between the switch contacts and the wire rope. The switches have wire-breaking monitoring.

  • Monitor Emergency Stop cable from 30mm to more than 100mm
  • Comes in either Die Cast or Stainless Steel body housings
  • Eliminates the need for mutliple Emergency Stop push button enclosures along the length of the machinery
  • Ease of installation with quick connect rope tensioniong and attachment
  • Tension gauge bubble makes visual confirmation of rope tension quick and easy
  • Available with aftermarket E-stop push button addition
  • Red/green LED for visual indication of device status
ADDITIONAL INFORMATION
For more infomration click on the part # range Or request a quote and enter part #
Part Number Product Description Part Number Product Description

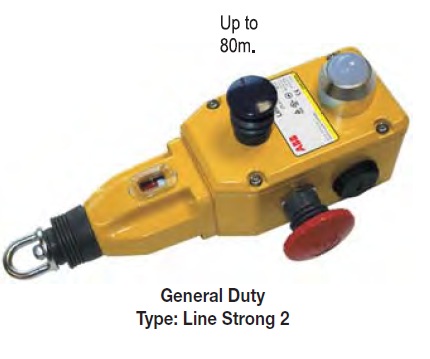

2TLA050200R0030 - 2TLA050200R1334 Line Strong 1 Mini-duty switches 2TLA050202R0030 - 2TLA050202R1334 Line Strong 2 Standard duty switches
2TLA050202R0020 - 2TLA050202R1324 Line Strong 2Z Standard duty switches 2TLA050202R03302- 2TLA050202R1030 Line Strong 3L and 3R Heavy duty switches
2TLA050206R0332- 2TLA050208R1020 Line Strong 3LZ and 3RZ Heavy duty switches 2TLA050204R0332- 2TLA050204R1030 Line Strong 3D Heavy duty switches
2TLA050204R0322- 2TLA050204R1020 Line Strong 3DZ Heavy duty switches 2TLA050204R0030- 2TLA050204R0006 Line Strong Rope switch accessories
2TLA050240R0101- 2TLA050240R0105 Accessories - Contact block & fittings
